relaydroid technical data
Models:
- relaydroid-3R: 3 open collector outputs (17.5mm narrow case)
- relaydroid-6R: 6 open collector outputs (17.5mm narrow case)
- relaydroid-9R: 9 open collector outputs (17.5mm narrow case)
- relaydroid-18R: 18 open collector outputs (35mm wide case)
- relaydroid-21R: 21 open collector outputs (35mm wide case)
- relaydroid-3D: 3 digital inputs (17.5mm narrow case)
- relaydroid-6D: 6 digital inputs (17.5mm narrow case)
- relaydroid-9D: 9 digital inputs (17.5mm narrow case)
- relaydroid-21D: 21 digital inputs (35mm wide case)
- relaydroid-3R3D: 3 open collector outputs, 3 digital inputs (17.5mm narrow case)
- relaydroid-3R3A: 3 open collector outputs, 3 analog inputs (17.5mm narrow case)
- relaydroid-3R3D3A: 3 open collector outputs, 3 digital inputs, 3 analog inputs (17.5mm narrow case)
- relaydroid-3R+COM: 3 open collector outputs and RX/TX pins for remote serial communication (17.5mm narrow case)
Parameters:
- Dimensions (W,H,D):

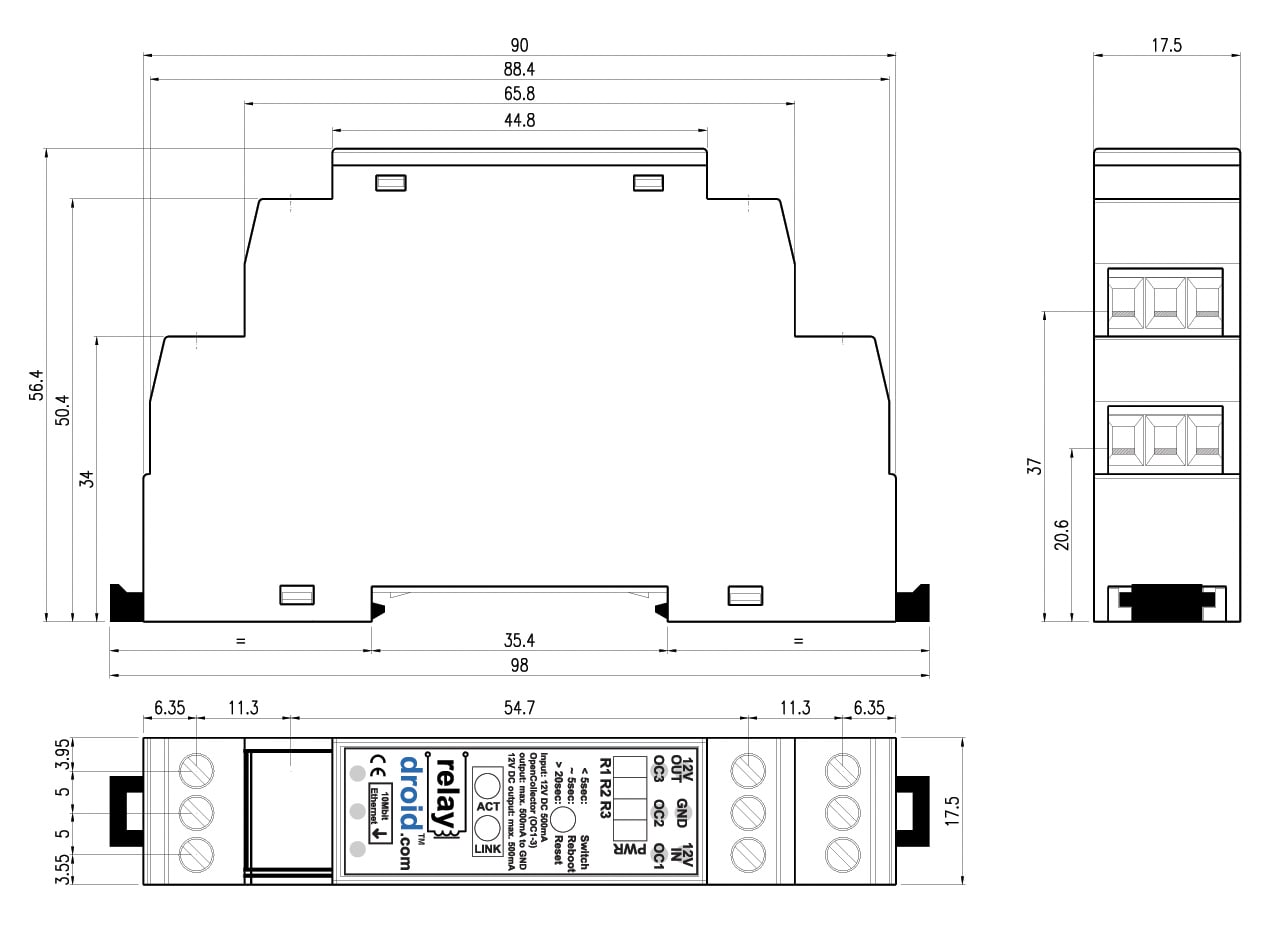

- 17.5mm narrow case: 17.5x90x56.4 mm

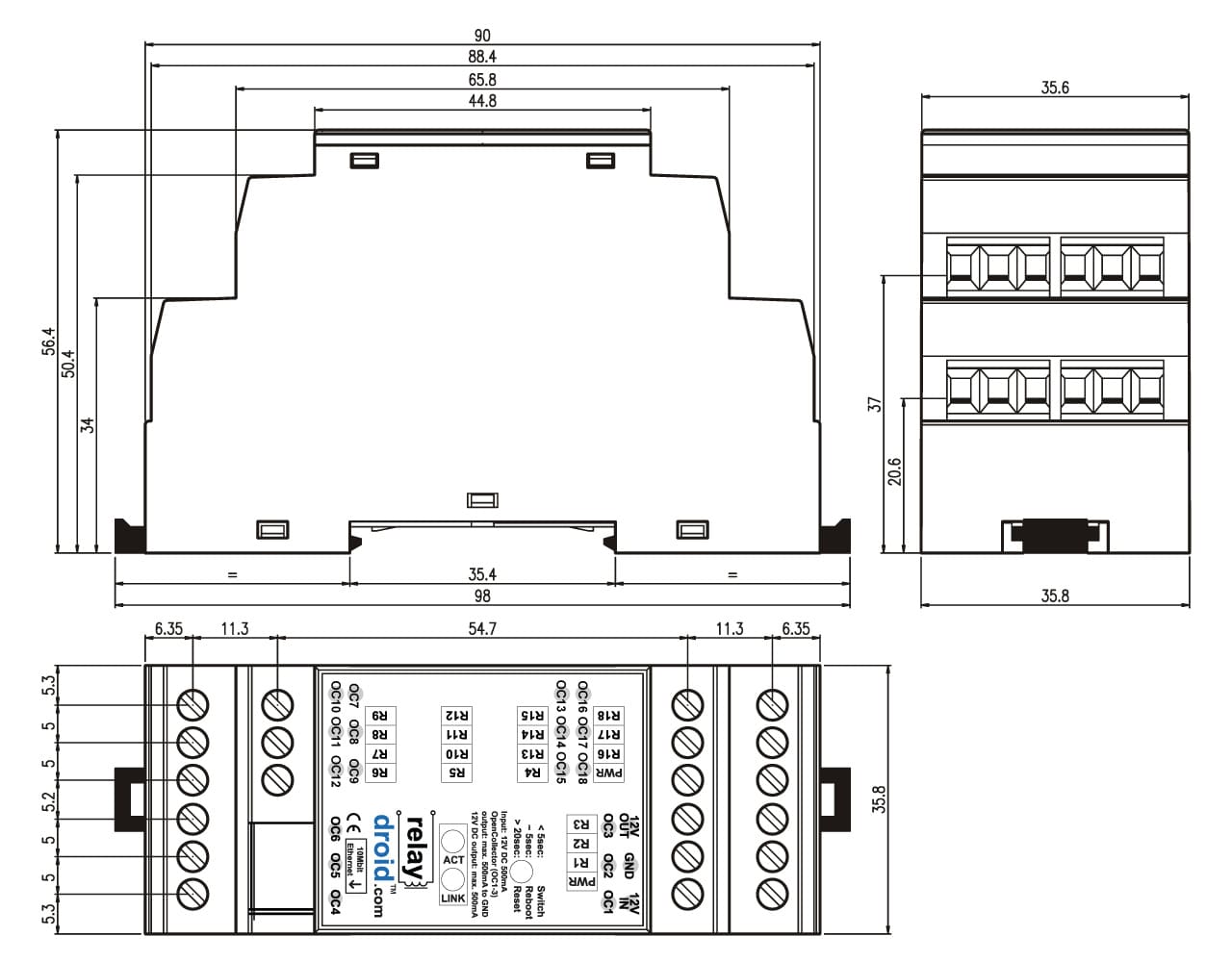

- 35mm wide case: 35.8x90x56.4 mm
- Holding: DIN-rail
- Recommended input voltage: 12VDC - 24VDC
- Operational input voltage ranges: min. 8VDC, (typ. 12VDC), max. 28VDC
- Input current requirements:
- relaydroid-3R, relaydroid-6R, relaydroid-9R, relaydroid-3R+COM, relaydroid-IO, relaydroid-xD, relaydroid-3R3D, relaydroid-3R3A: recommended min. 500mA
- relaydroid-18R, relaydroid-21R: recommended min. 1250mA
- Power consumption: max. 1W (@12VDC) with all outputs off
- Open collector outputs can drain max. 500mA to GND
- Ethernet: 10/100/1000 Mbit compatible, RJ-45 port, 10Mbit
- Implemented network protocols: TCP/IP, UDP, HTTP, NTP, NetBios, DHCP, DNS, ICMP (PING), SMTP (email)
- 4 LED: 1 power status + 2 Ethernet status + 1 OC1 output status LED
- 1 button, used to: switch outputs on/off, reboot, reset to factory settings
- Made in Hungary (EU)
